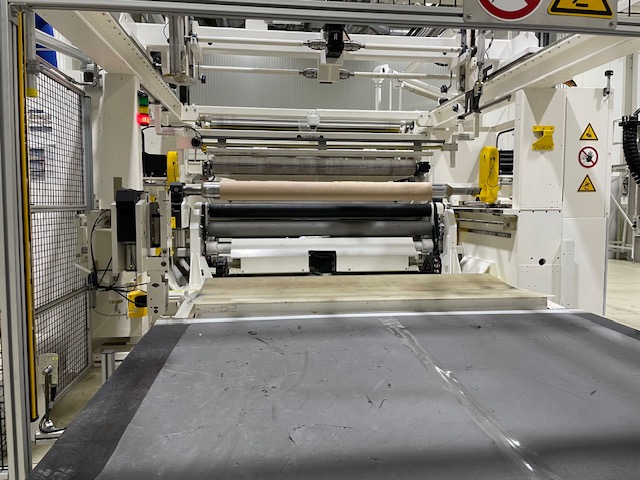

SML Winder for foil 2350 mm, Year of building 2016

The winder is in a very good condition und now part of a cast film line.
Only to extend the width of this line. The owner like to sell it.

Max. foil width = 2350 mm

Max. Roller width input part = 2600 mm,

Max Diameter roll = 980 mm
Core size 3”, 6

Foil Thickness 15 – 200 my,

Max. speed 250 m/min
Edge trim cutting with razor blade

Winding is possible with contact or gap,

Automatic load of core 3” out of core magazine.
Automatic unload of the roll by roboter.
