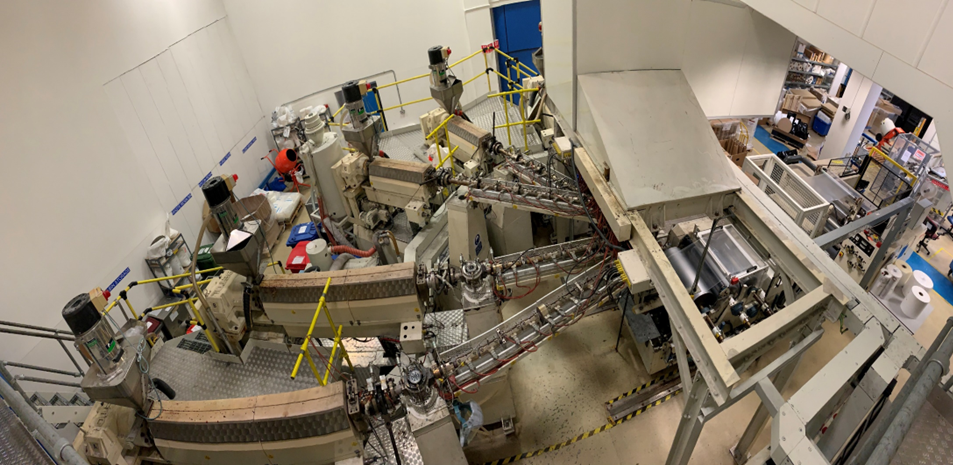

CPP 7 lagen 5 Extruder Filmbreite 650 mm Testlinie

CPP 7 layer, year of building 1994

PILOT Line But can be used as production line for special small lots.

 Film width max = 650 mm,

Max . output = 200 kg/h
Die width = 800mm

• 5 Extruders:
• 2x Ø 60mm, melt pumps available 70 kg/h each
• 3x Ø 38mm 19 kg/h each
• Output: 200 kg/h
• Gauge: 50-700 μm
• Hoppers and pneumatic feeding system available
• Cloeren Feedblock
• EDBBCAA
• EBBCDCA
• ACEDEBA

  Chill roll with 3 roller


• Diameter Rewinder max = 300 mm
  Screen changer
  Melt Pump
  Corona unit

  Diameter Rewinder max = 300 mm,
