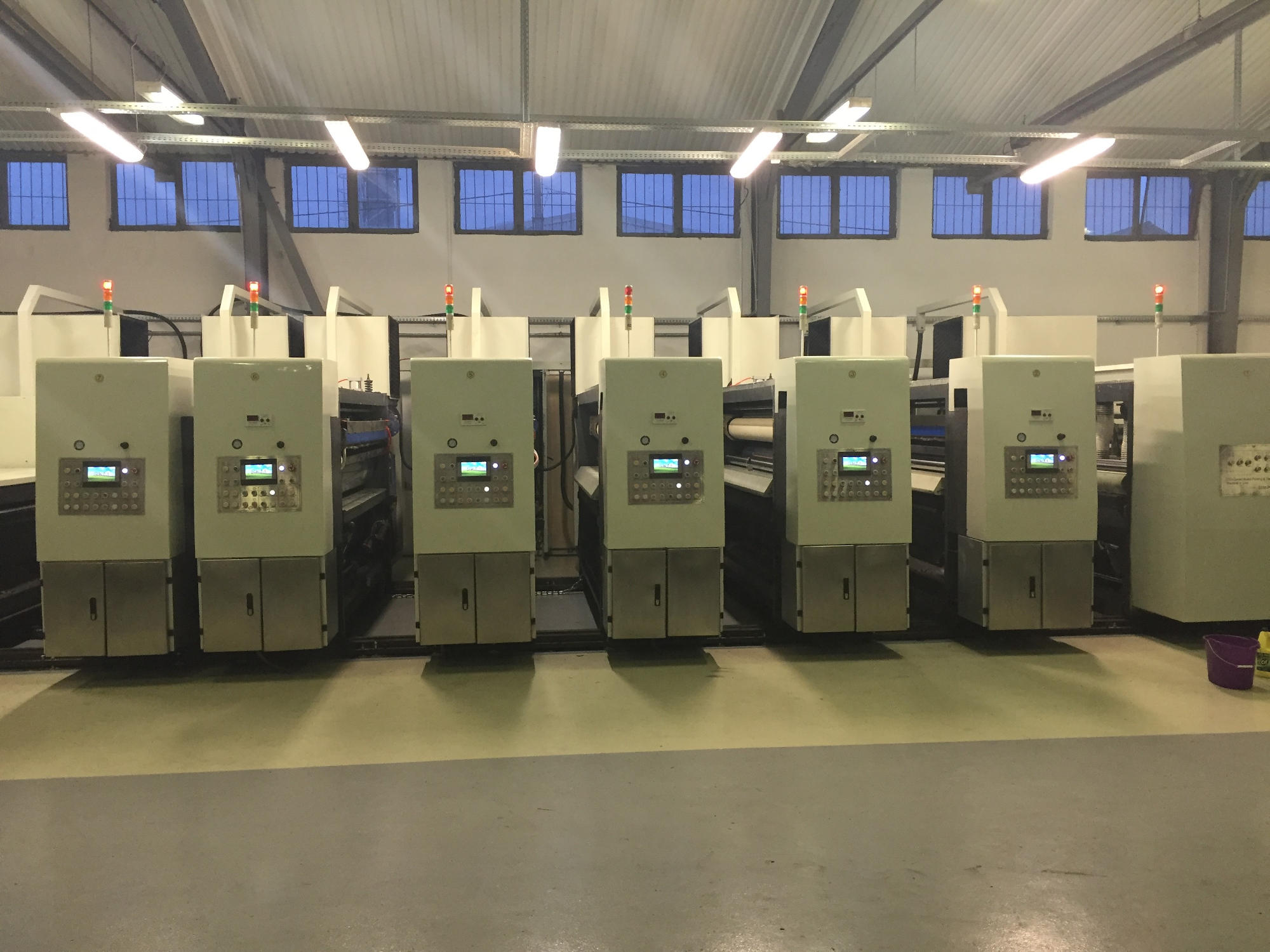

SKM Stack Flexo Karton

SKM-PD1222 technical parameter

 Feeding unit: automatic Vacuum Feeder antistatic system for corruguated paper
Printing unit: 6 printing units / 5 pieces rákelkamra 1 piece rubber roller
Every print deck has a ceramic anilox rolls.
Drying unit: IR 6x1,2KW dying unit+on every printing unit has 2KW IR drying
Generic details:
Bosch Rexroth control with separate servo engines. 11 pieces high power servo engines.
Each printing unit has a vacuum sheet transfer on the whole machine
Servo ffeding unit with exchangeable high abrasion-resistant feeder rolls, dust remove brush, static extractor
Maximum mechanical speed: 130 pieces /min
Ideal speed: 120 pieces/min
Printing speed: 70-90 pieces/min
Maximum sheet format: 1200mmx2400mmx12mm
Minimum sheet format: 320x650x1,5mm
Maximum printing size: 1150mmx2200mm
Stanz tolerance: -+ 1 mm
Klisé width: 1,5mm-7,2mm
Printing preciseness: -+0,5mm
Corrugated width: 1,5mm-11mm
The machine has a software with no source-code and has comments for the future development

 Control system:
Siemens control system, every werk has own HMI
Weight: 50 t
Moving: rail
Total size:: 22m x 4,85m x 2,8m
